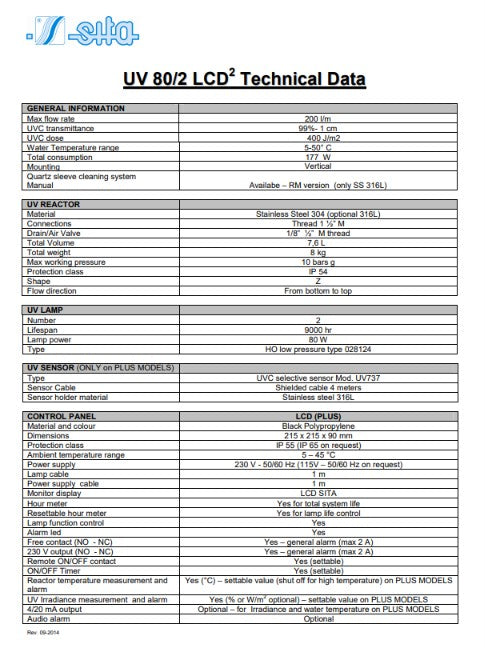

SITA UV SYSTEM 80/2 LCD2, 53 GPM, SS304, 1-1/2" / LCD3025

SITA UV SYSTEM 80/2 LCD2, 53 GPM, SS304, 1-1/2" / LCD3025 - FPST0013

• Maximum Flow Rate: 53 GPM (Equivalent to 200 liters per minute or 12 m³/h).
• UV-C Dose: 400 J/m² (calculated based on 99% water transmittance at 1 cm).
• Germicidal Effectiveness: Destruction and neutralization of bacterial, viral, and fungal DNA/RNA without adding chemicals.

• Body Material: AISI 304 Stainless Steel polished both internally and externally (optional in 316L).
• Hydraulic Connections: 1-1/2" Male (M) threaded.

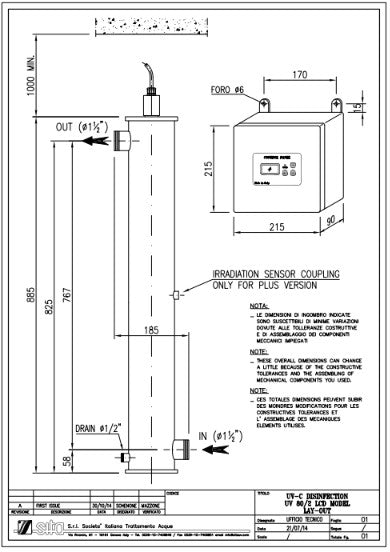

• Physical Configuration: "Z" shape design with flow direction from bottom to top.
• Maximum Working Pressure: 10 bar (145 PSI).
• Drain/Purge Valve: 1/8" / 1/2" M threaded connection.
• Total Volume: 7.6 liters.
• Total Weight: 8 kg.

• Number of Lamps: 2 low-pressure lamps.
• Power per Lamp: 80 Watts (Total system consumption: 177 W).
• Lamp Life: 9,000 hours (approximately 1 year of continuous use).
• Quartz Tube: High purity with O-ring seal.
• Cleaning System: Manual (cleaning of quartz sleeves with rod/wiper).

• Power Supply: 230 V – 50/60 Hz.
• Cabinet Material: Painted steel (RAL 7035 Grey).
• Protection Class: IP 54.
• Display: Multifunctional LCD display with microprocessor.
• Monitor Functions:
  • Total system hour counter.
  • Programmable countdown for lamp replacement.
  • Red LED fault indicator and audible alarm.
  • Voltage-Free Dry Contact (NO/NC): General alarm relay for remote monitoring or pump shutdown.
  • Remote ON/OFF contact.
