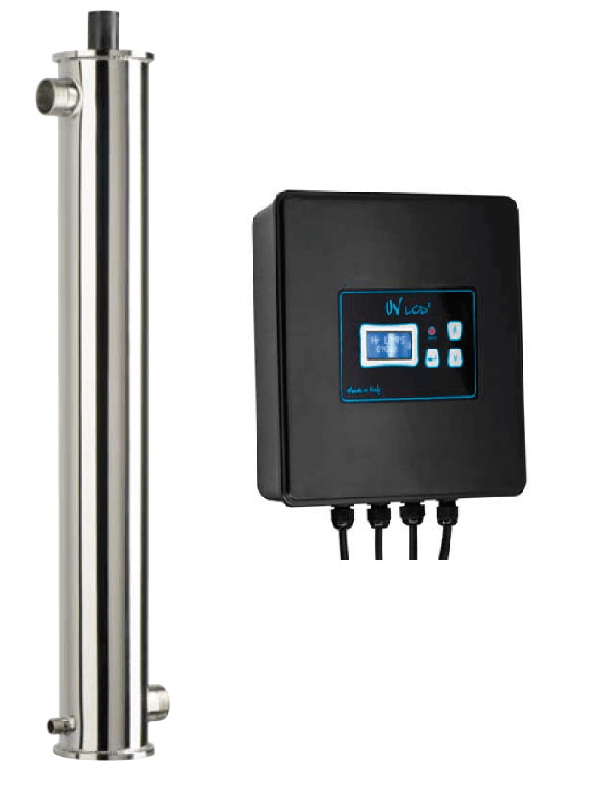

SITA 480 AL2 UV SYSTEM, 22 GPM, SS304, 1 1/2" / 027058/Y

SITA UV SYSTEM 480 AL2, 22 GPM, SS304, 1 1/2" / 027058/Y - FPST0005

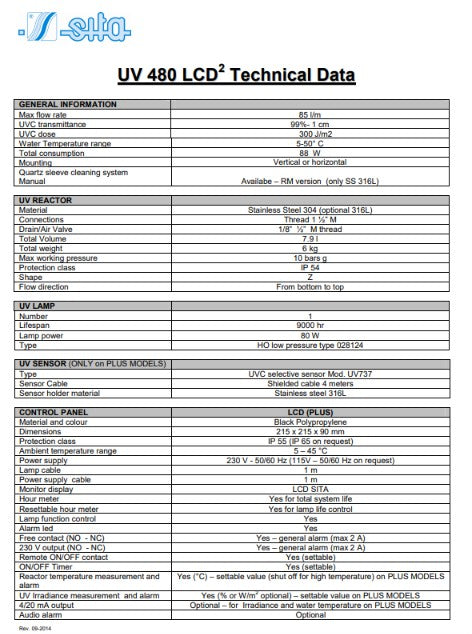

• Maximum Flow: 22 GPM (Gallons per minute), equivalent to 85 liters per minute.
• Body Material: Polished AISI 304 stainless steel.

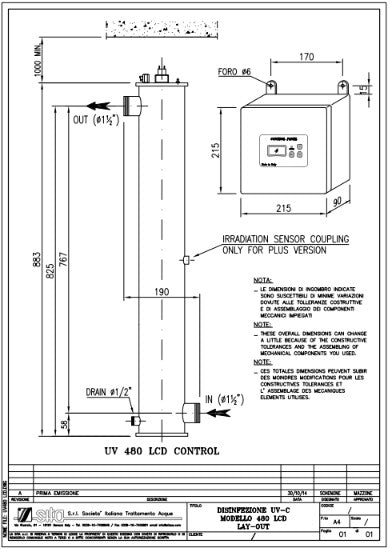

• Hydraulic Connections: 1 1/2" Male (M) inlet and outlet.
• UV-C Dose: 300 J/m² (30 mJ/cm²), ensuring the inactivation of bacteria, viruses, and protozoa.
• Maximum Operating Pressure: 10 bar (145 PSI).
• Installation Orientation: Vertical or horizontal.

• Lamp Configuration: 1 high-efficiency 80-watt UV lamp.
• Lamp Lifespan: 9,000 hours (approximately 1 year of continuous operation).
• Total Power Consumption: 88 W.
• Power Supply: Single-phase (230 V - 50/60 Hz).

• Digital Display: Features an operating hours/days meter.
• Countdown Timer: End-of-life alarm to schedule annual lamp replacement.
• Visual and Audible Alarms: Integrated red fault LED and an acoustic buzzer to immediately alert if the lamp turns off.

1. Mandatory Pre-filtration: A 5-micron sediment filter must be installed before the UV system. If the water contains suspended particles, these will block UV light (shadow effect) and reduce disinfection effectiveness.
2. Maintenance: The protective quartz sleeve must be checked and cleaned periodically (every 3-6 months) to remove mineral or scale buildup that reduces light transmittance.
