PENTAIR

BAG FILTER BP-420-100, 4.5"X20", 100 MCR / W2T155753

BAG FILTER BP-420-100, 4.5"X20", 100 MCR / W2T155753

₡ 4.500,00
₡ 4.500,00
Sale Sold out

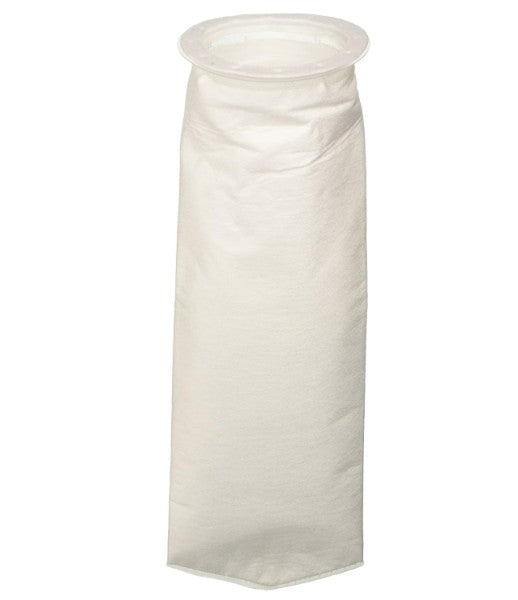

BP-420-100 BAG FILTER, 4.5"X20", 100 MCR / W2T155753 - FPEV0005
The Evoqua BP-420-100 (reference code W2T155753) is a high-efficiency liquid filter bag designed for the retention of coarse sediment, particles, and dirt in critical industrial or water treatment applications.
Its technical specifications and main compatibilities are detailed below:
Technical Specifications
  • Brand/Original Manufacturer: Manufactured under the Evoqua Water Technologies line (often interchangeable or cross-referenced with Pentair Pentek's BP series)
  • Material: Glazed Polypropylene Felt. The glazed finish melts the outer fibers to prevent material migration into the clean water flow.
  • Retention Rating: 100 microns (mcr). Ideal for pre-filtration to retain large particles.
  • Dimensions: Standard #420 size (often nominally referred to in housings as 4.5" x 20", with the bag physically measuring 4" diameter by 18" long / 102 mm x 457 mm).
  • Maximum Temperature: Withstands up to 93.3 °C (200 °F).
Compatibility and Direct Replacements
This filter is equivalent to and can replace or be replaced by the following models on the market:
  • Pentair / Pentek: Model BP-420-100 / Part number 155394-03.
  • SpiroPure: SP-BP-420-100.
  • Compatible Housings: Designed to be installed in #20 size bag filter housings or specific housings such as the Pentek PBH-420 series.
Common Applications
Thanks to its chemical compatibility with polypropylene, it resists:
  • Corrosive fluids (weak acids and alkalis).
  • Oils and organic solvents.
  • Potable water or industrial process systems that require high solid retention capacity.
