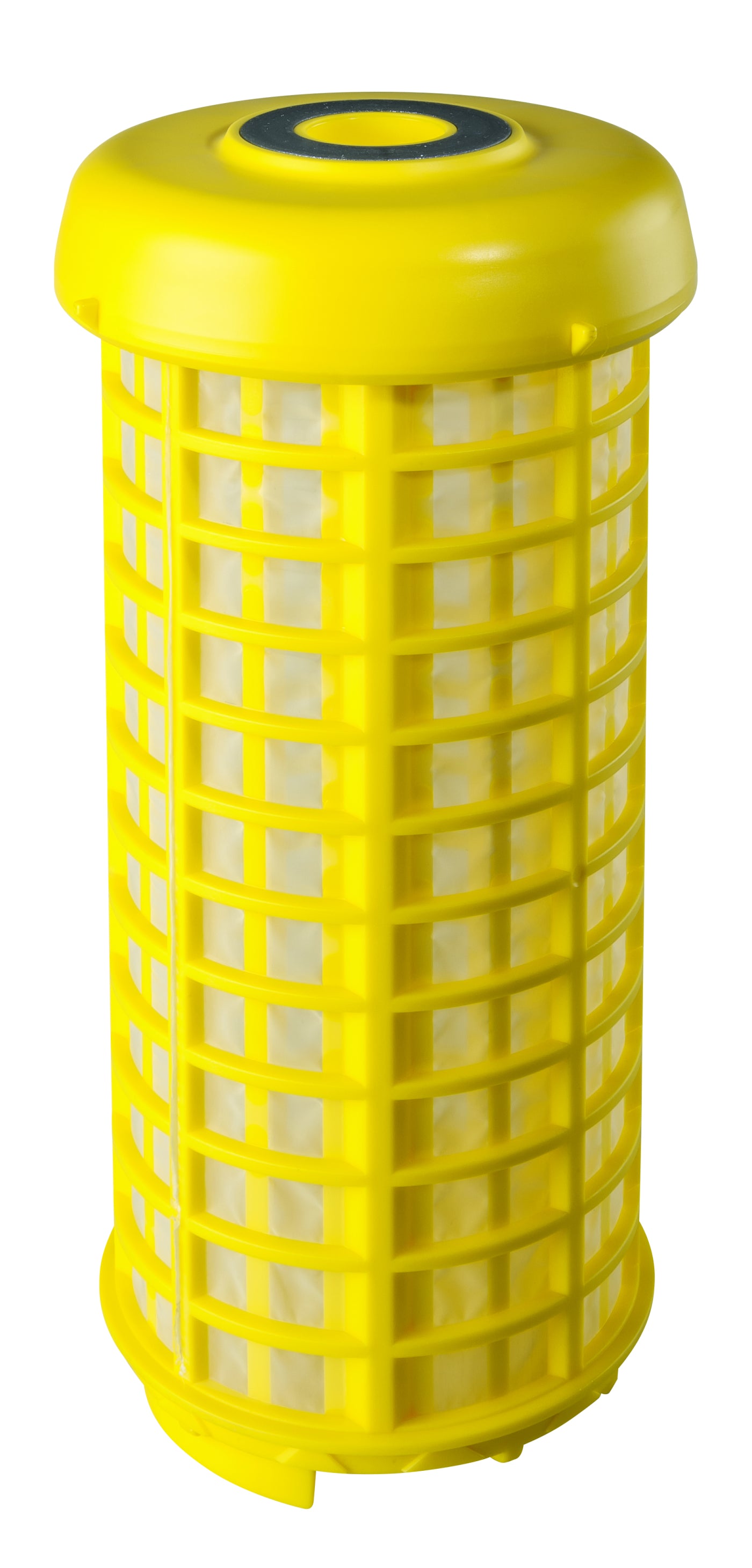

HYDRA BIG RLH 90 MCR CARTRIDGE - RA5001010

The HYDRA BIG RLH 90 MCR Cartridge (Code: RA5001010) is an original spare part from the Italian brand Atlas Filtri, designed exclusively for high-flow self-cleaning filtration systems of the HYDRA BIG series.

This component stands out for its automatic backwash capability, which allows it to expel retained sediments without needing to disassemble the equipment.

• Filtration grade: 90 microns (effectively retains coarse particles such as sand, rust, scale, and dirt).
• Mesh material: Polyester (high-strength plastic mesh).
• Structure: Rigid polypropylene frame manufactured by overmolding, without glues or sealants.
• Maximum recommended flow rate: Up to 15,000 liters per hour (depending on the connection size of the HYDRA BIG housing).
• Minimum flow rate for backwash: Requires at least 2,400 l/h to properly activate reverse flow cleaning.
• Operating limits: Operating temperature from 4 °C to 45 °C and maximum service pressure of 8.0 bar.
• Estimated service life: Between 12 and 24 months with regular maintenance through continuous backwashes.

---

1. Ordinary filtration: Water flows from the outside to the inside of the cartridge, trapping sediments in the polyester mesh.
2. Backwash operation: When the filter's lower drain valve is opened, the sudden pressure drop moves the cartridge downwards.
3. Flow reversal: Water is guided under pressure from the inside to the outside of the cartridge, quickly detaching and expelling all accumulated impurities to the drain.

---

• Primary filtration for well water treatment or domestic networks with high solid loads.
• Protection of more delicate downstream systems (such as activated carbon filters, water softeners, or reverse osmosis membranes).
• Agricultural, commercial, or industrial high-flow installations.
